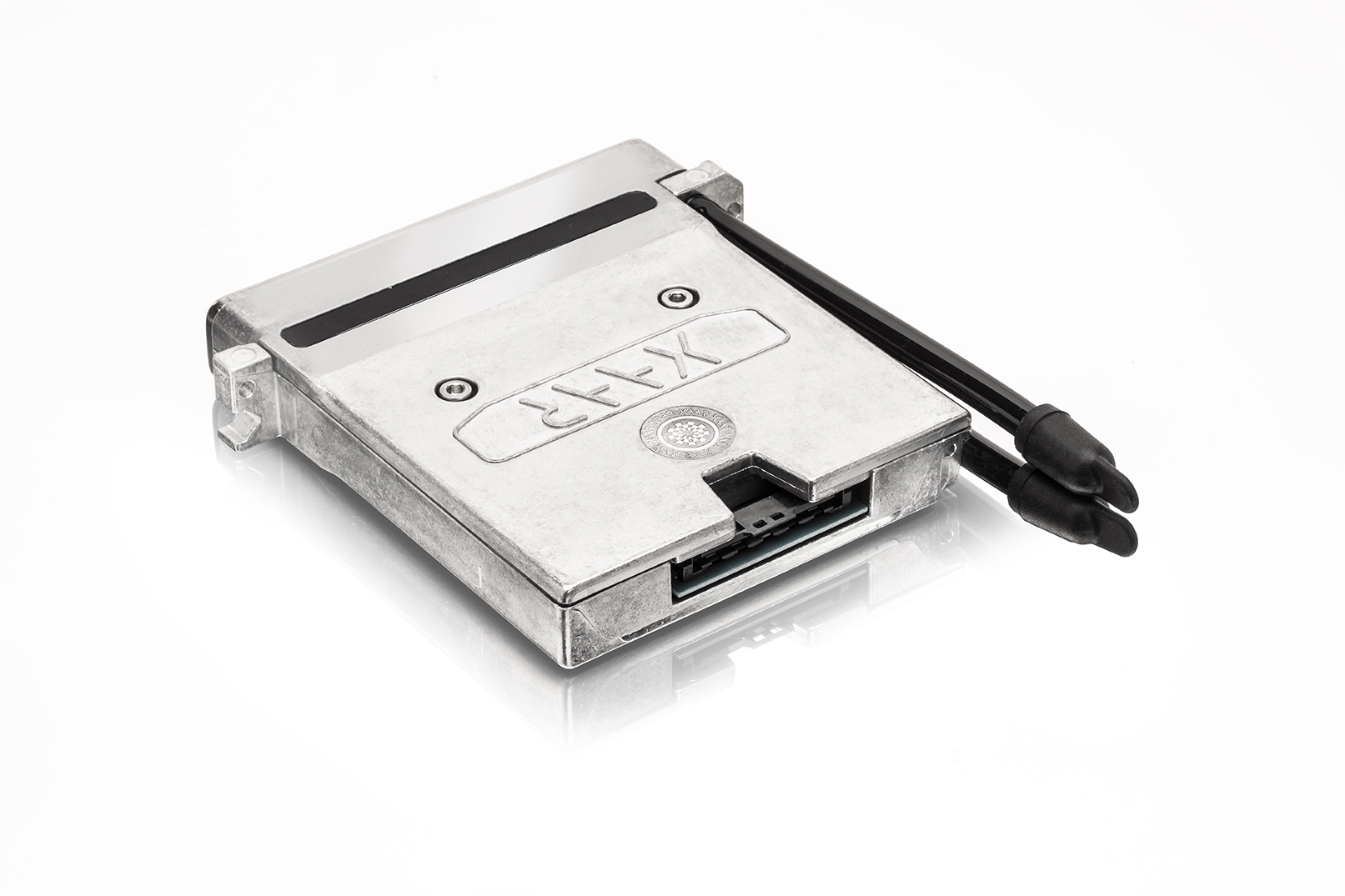

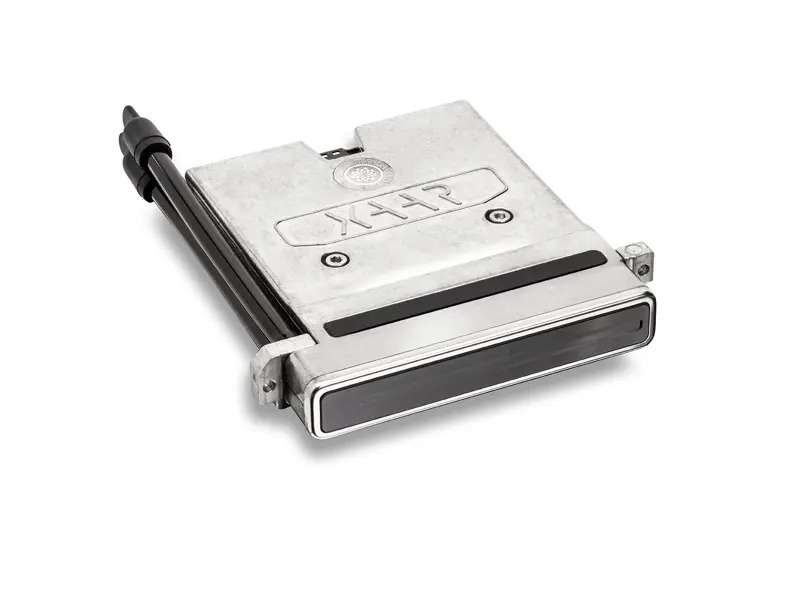

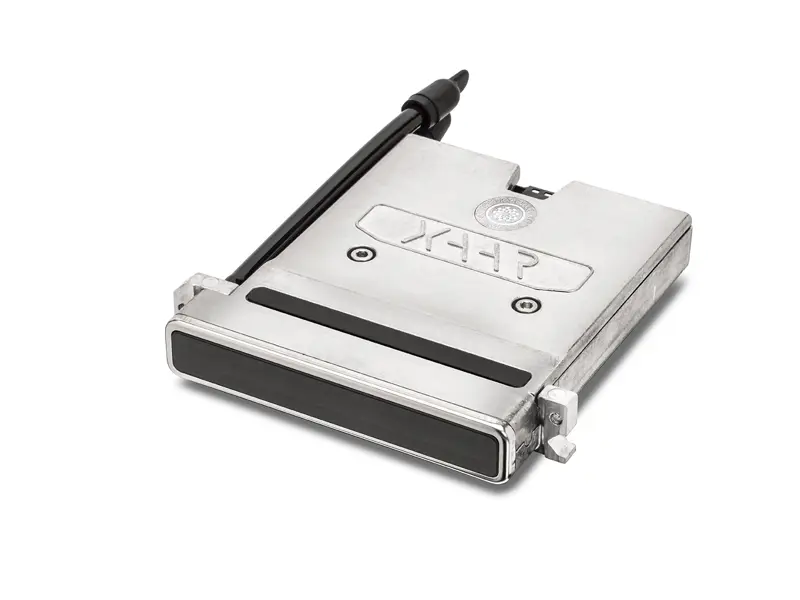

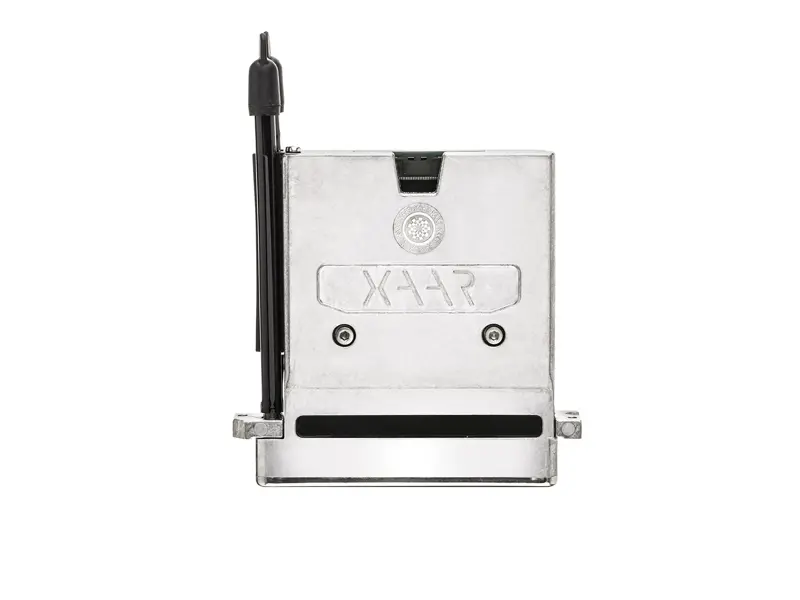

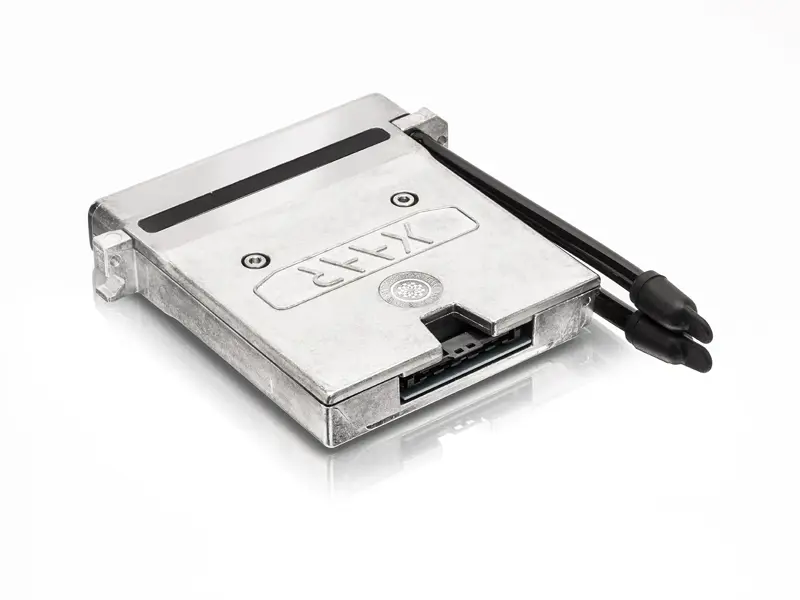

Xaar 502 0

Key benefits

  • Exceptional print quality: the Xaar 502 GS15 O and the revolutionary PrecisionPlus architecture deliver smooth tints, graduations and excellent edge definition for printing text and graphics.
  • Industrial reliability: the Xaar 502 GS15 O printhead is designed to deliver industrial reliability and robustness resulting in increased production up-time even in harsh environments.
  • High production up-time: the internal architecture of the printhead enables quick and easy priming, automatic nozzle priming and self-recovery, all resulting in higher productivity and less ink waste.

Digital secondary packaging printing using inkjet and mineral-oil free (MOF) inks

Reach higher levels of performance with the new Xaar 502 GS15 O printhead. Whether printing high quality text, data and bar codes to secondary packaging or printing directly onto shaped products or primary packaging, this versatile printhead provides industrial reliability for high production up-time.

Whilst proactively providing a solution ahead of potential legislation, Xaar approved MOF ink has also been developed to meet the requirements of coding and marking companies.




The Xaar 502 GS15 O has the ability to print greyscale, offering Coding & Marking printers and manufacturers key technology advantages, unparalleled quality and resolution of print. The Xaar 502 GS15O has been designed by Xaar to ensure its customers remain at the leading edge of print performance.

  • 2D data matrix coding
  • Brand graphics and logos
  • Expiry date, traceability and batch codes
  • Primary and secondary packaging, outer case bar-coding
  • QR codes

Other Applications:
This printhead family can also be used to print fluids used in the Advanced Manufacturing and 3D market sectors. The piezo inkjet technology used in these printheads is capable of printing fluids with a range of viscosity, reactivity and conductivity. Xaar can support you in choosing the right printhead for the fluid type and for the application vs. the performance specification and price.

Physical attributes Xaar 502 GS15 O† Xaar 502 GS15 OR†
Active nozzles 500 500
Print swathe width (mm) 70.5 70.5
Number of rows 1 1
Nozzle pitch (µm) 141.1 141.1
Nozzle density (nozzles per inch) 180 180
Nozzle stagger (µm) 47 47
Nozzle guard C&M C&M
Printhead weight (dry) (g) 208 205
Ink type Oil Oil
Drop volume* (pL) 15 to 75 15 to 75
Drop velocity* (m/s) 7 7
TF Technology mode None None, Pulsed, High Flow
Number of grey levels* 6 6
Typical firing frequency* (kHz) 7.2 7.2
Dimensions (WxDxH) (mm) 104 x 17 x 113 104 x 17 x 100

* Dependent on ink used and system integration

† includes filter module

Digital secondary packaging printing using inkjet and mineral-oil free (MOF) inks

Reach higher levels of performance with the new Xaar 502 GS15 O printhead. Whether printing high quality text, data and bar codes to secondary packaging or printing directly onto shaped products or primary packaging, this versatile printhead provides industrial reliability for high production up-time.

Whilst proactively providing a solution ahead of potential legislation, Xaar approved MOF ink has also been developed to meet the requirements of coding and marking companies.

The Xaar 502 GS15O has the ability to print greyscale, offering Coding & Marking printers and manufacturers key technology advantages, unparalleled quality and resolution of print. The Xaar 502 GS15O has been designed by Xaar to ensure its customers remain at the leading edge of print performance.

  • 2D data matrix coding
  • Brand graphics and logos
  • Expiry date, traceability and batch codes
  • Primary and secondary packaging, outer case bar-coding
  • QR codes

Other Applications:
This printhead family can also be used to print fluids used in the Advanced Manufacturing and 3D market sectors. The piezo inkjet technology used in these printheads is capable of printing fluids with a range of viscosity, reactivity and conductivity. Xaar can support you in choosing the right printhead for the fluid type and for the application vs. the performance specification and price.

Physical attributes Xaar 502 GS15 O† Xaar 502 GS15 OR†
Active nozzles 500 500
Print swathe width (mm) 70.5 70.5
Number of rows 1 1
Nozzle pitch (µm) 141.1 141.1
Nozzle density (nozzles per inch) 180 180
Nozzle stagger (µm) 47 47
Nozzle guard C&M C&M
Printhead weight (dry) (g) 208 205
Ink type Oil Oil
Drop volume* (pL) 15 to 75 15 to 75
Drop velocity* (m/s) 7 7
TF Technology mode None None, Pulsed, High Flow
Number of grey levels* 6 6
Typical firing frequency* (kHz) 7.2 7.2
Dimensions (WxDxH) (mm) 104 x 17 x 113 104 x 17 x 100

* Dependent on ink used and system integration

† includes filter module
