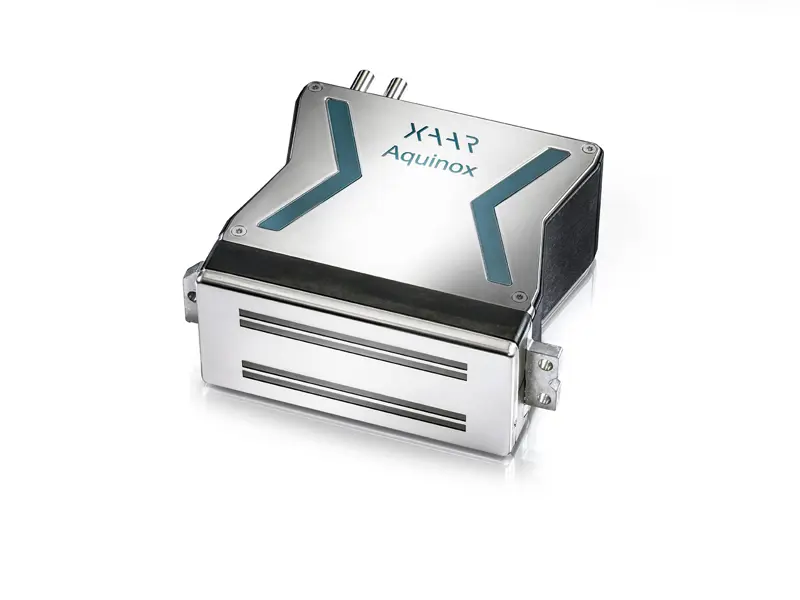

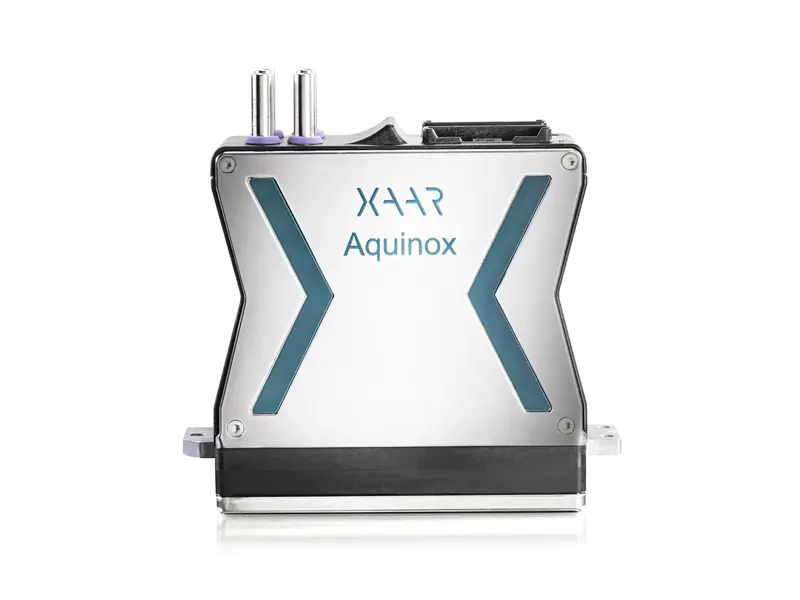

Xaar Aquinox

Key Benefits

Exceptional reliability
Featuring TF Technology and our new patented aQ Power Technology to deliver enhanced reliability when printing with water-based fluids, increasing lifespan and robustness.
Transform productivity
Offers exceptional performance with speeds of over 100m/min and a high native resolution of 720dpi and firing frequency of up to 48kHz, enables high fluid laydown, with maximum productivity.
Reimagine creativity
Reliably jet high viscosity and high loaded pigment fluids of up to 100cP with Ultra High Viscosity Technology for higher opacity, more vibrant colours and stronger whites and blacks.
Future-proof your business
From less water and energy consumption to reduced chemicals in waste water, the Xaar Aquinox helps you reduce energy costs and consumption while offering a more sustainable way of printing.

A radically new approach for jetting water-based fluids

Engineered to deliver exceptional reliability, the Xaar Aquinox is a revolutionary aqueous printhead that’s truly built to last.

With our patented new aQ Power - a combination of technologies including a novel drop ejection technique, which work together to deliver enhanced reliability when printing with water-based fluids, increasing lifespan and robustness.

Ultra High Viscosity Technology allows you to jet high pigment loaded fluids of up to 100cP, enabling an extended colour gamut and increased opacity, making colours more vibrant and whites and blacks stronger.

TF Technology ink recirculation with a very high flow rate keeps the ink in constant motion directly passing the back of the nozzle, ensuring the printhead is continuously primed and preventing any sedimentation or blocked nozzles.

Reduce energy and water consumption and simplify production processes for lower production costs as well as use more eco-friendly water-based fluids to reduce chemicals in waste water.

Download the datasheet for further information or contact us to find out more.

Ceramics
Coding & Marking
Corrugated
Packaging
Textiles

Physical attributes	Xaar Aquinox
Fluid base	Aqueous
Subdrop volume* (pL)	6	12
Maximum firing frequency (up to) (kHz)	48
Nozzle density (nozzles per inch)	720
Print swathe width (mm)	70.5
Dimensions (WxDxH) (mm)	132 x 50 x 135

* Dependent on system integration

Overview

Engineered to deliver exceptional reliability, the Xaar Aquinox is a revolutionary aqueous printhead that’s truly built to last.

With our patented new aQ Power - a combination of technologies including a novel drop ejection technique, which work together to deliver enhanced reliability when printing with water-based fluids, increasing lifespan and robustness.

Ultra High Viscosity Technology allows you to jet high pigment loaded fluids of up to 100cP, enabling an extended colour gamut and increased opacity, making colours more vibrant and whites and blacks stronger.

TF Technology ink recirculation with a very high flow rate keeps the ink in constant motion directly passing the back of the nozzle, ensuring the printhead is continuously primed and preventing any sedimentation or blocked nozzles.

Reduce energy and water consumption and simplify production processes for lower production costs as well as use more eco-friendly water-based fluids to reduce chemicals in waste water.

Download the datasheet for further information or contact us to find out more.

Applications

Ceramics
Coding & Marking
Corrugated
Packaging
Textiles

Specification

Physical attributes	Xaar Aquinox
Fluid base	Aqueous
Subdrop volume* (pL)	6	12
Maximum firing frequency (up to) (kHz)	48
Nozzle density (nozzles per inch)	720
Print swathe width (mm)	70.5
Dimensions (WxDxH) (mm)	132 x 50 x 135

* Dependent on system integration
