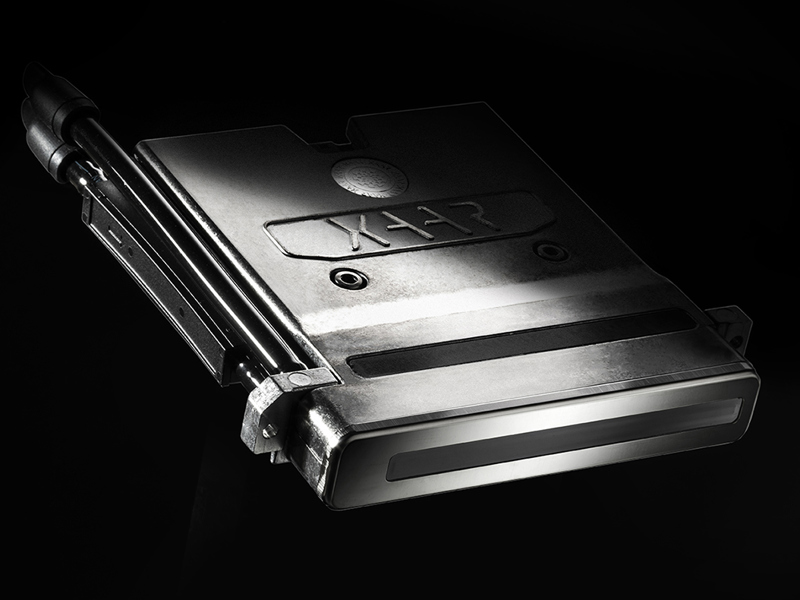

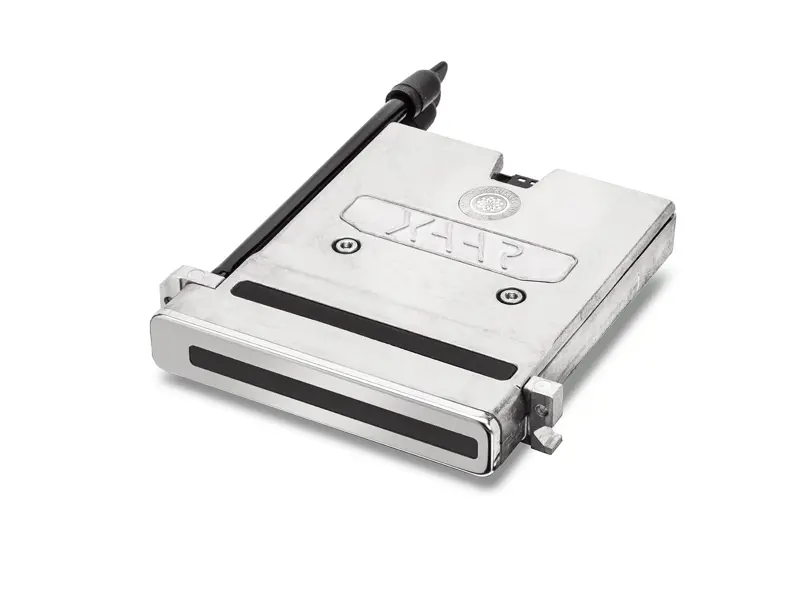

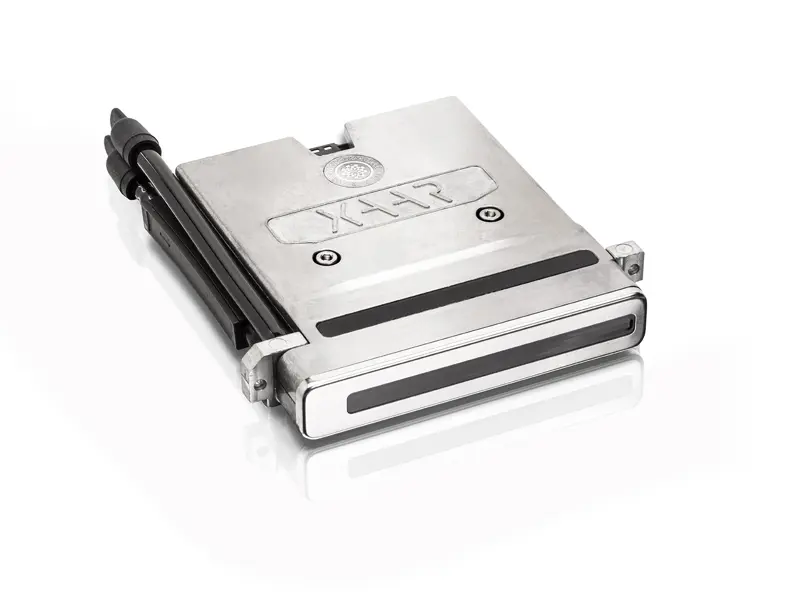

Xaar 501

Gain competitive advantage

+

With industrial reliability, printing at up to 36 KHz

+

Exceptional print quality with PrecisionPlus Technology

+

Widest range of fluids now including UV

+

Flexible & easy integration

500 nozzles in 70mm width

Wide 70mm print swathe for high productivity and less printhead stitching. Native resolution of 180 nozzles per inch providing flexibility for single or multi-pass print

Multiple print orientations

Prints reliably in vertical or horizontal modes, or dynamically on a robot arm

TF Technology recirculation

Xaar’s TF Technology ensures instant prime and startup as well as reliability, ease of use and excellent print quality

Flexible drop sizes

XaarDot provides different drop sizes from greyscale technology to optimise coverage and print quality

XaarGuard

Maximising life, uptime and print quality through nozzle protection

High Laydown Technology

Delivers very high volumes in single pass for coatings and structuring

Ultra High Viscosity

Viscosities of up to 60cP can be jetted, for printing an increased colour gamut, high opacity and special effects or jetting a higher molecular weight materials

Print uniformity & quality

The enhanced actuator gives exception uniform drop formation delivering even colour density across the swathe combined with PrecisionPlus for unprecedented drop placement

Product customisation

Put your own logo / branding onto the printhead to ensure visibility of your brand on the print engine

Graphics on canvas, vinyl, paper, foam board, rigid laminate and textiles
Outdoor and indoor signage
Point-of-sale displays

Other Applications:
This printhead family can also be used to print fluids used in the Advanced Manufacturing and 3D market sectors. The piezo inkjet technology used in these printheads is capable of printing fluids with a range of viscosity, reactivity and conductivity. Xaar can support you in choosing the right printhead for the fluid type and for the application vs. the performance specification and price.

Physical attributes	Xaar 501 GS8 O†	Xaar 501 GS8 OR	Xaar 501 GS8 U†	Xaar 501 GS8 UR
Active nozzles	500	500	500	500
Print swathe width (mm)	70.5	70.5	70.5	70.5
Number of rows	1	1	1	1
Nozzle pitch (µm)	141.1	141.1	141.1	141.1
Nozzle density (nozzles per inch)	180	180	180	180
Nozzle guard	WFG	WFG	WFG	WFG
Printhead weight (dry) (g)	208	205	208	205
Ink types	Oil	Oil	UV	UV
Drop volume* (pL)	8 to 40	8 to 40	8 to 40	8 to 40
TF Technology mode	None	None, Pulsed, High Flow	None	None, Pulsed, High Flow
Number of grey levels*	6	6	6	6
Typical firing frequency* @ max DPD (kHz)	8	8	8	8
Dimensions (WxDxH) (mm)	104 x 17 x 113	104 x 17 x 100	104 x 17 x 113	104 x 17 x 100

* Dependent on ink used and system integration
† Includes filter module

Graphics on canvas, vinyl, paper, foam board, rigid laminate and textiles
Outdoor and indoor signage
Point-of-sale displays

Other Applications:
This printhead family can also be used to print fluids used in the Advanced Manufacturing and 3D market sectors. The piezo inkjet technology used in these printheads is capable of printing fluids with a range of viscosity, reactivity and conductivity. Xaar can support you in choosing the right printhead for the fluid type and for the application vs. the performance specification and price.

Physical attributes	Xaar 501 GS8 O†	Xaar 501 GS8 OR	Xaar 501 GS8 U†	Xaar 501 GS8 UR
Active nozzles	500	500	500	500
Print swathe width (mm)	70.5	70.5	70.5	70.5
Number of rows	1	1	1	1
Nozzle pitch (µm)	141.1	141.1	141.1	141.1
Nozzle density (nozzles per inch)	180	180	180	180
Nozzle guard	WFG	WFG	WFG	WFG
Printhead weight (dry) (g)	208	205	208	205
Ink types	Oil	Oil	UV	UV
Drop volume* (pL)	8 to 40	8 to 40	8 to 40	8 to 40
TF Technology mode	None	None, Pulsed, High Flow	None	None, Pulsed, High Flow
Number of grey levels*	6	6	6	6
Typical firing frequency* @ max DPD (kHz)	8	8	8	8
Dimensions (WxDxH) (mm)	104 x 17 x 113	104 x 17 x 100	104 x 17 x 113	104 x 17 x 100

* Dependent on ink used and system integration
† Includes filter module

Xaar’s Unique TF Technology

Dynamic printing in any orientation

Flexible ink supply system options

No recirculation

A simple ink supply can be used for the simplest integration.

Ink flows to the channels and is ejected through the nozzles with no ink recirculation.

Pulsed TF Technology re-circulation

Ink is recirculated only when the printhead is not jetting

Delivering benefits in reliability while maintaining simplicity of implementation. During non-jetting periods the ink is recirculated past the back of the nozzles.

Example. During the space between boxes on the conveyor or when you activate the cleaning cycle.

Full TF Technology recirculation

Continuous ink flow at a high rate directly past the back of the nozzle during drop ejection.

Air bubbles and unwanted particles present in the fluid are carried away.

Improves reliability in the harshest industrial environments.
