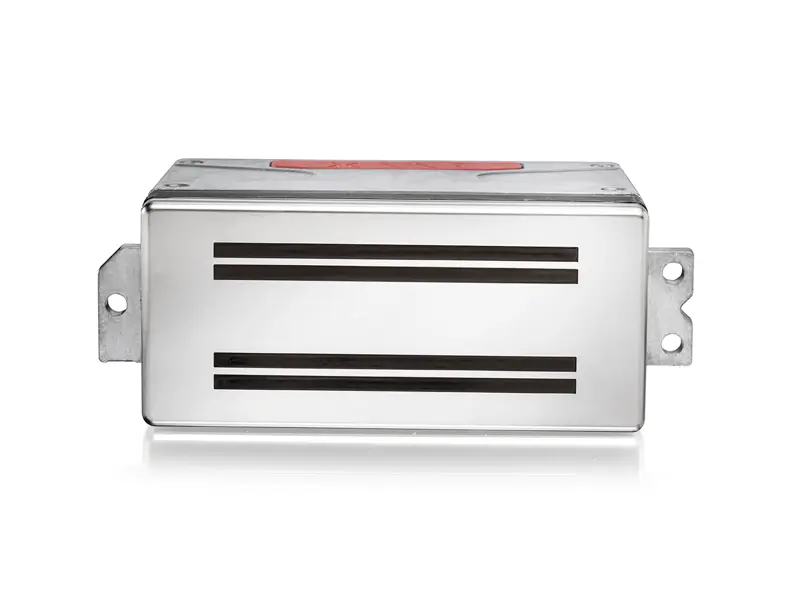

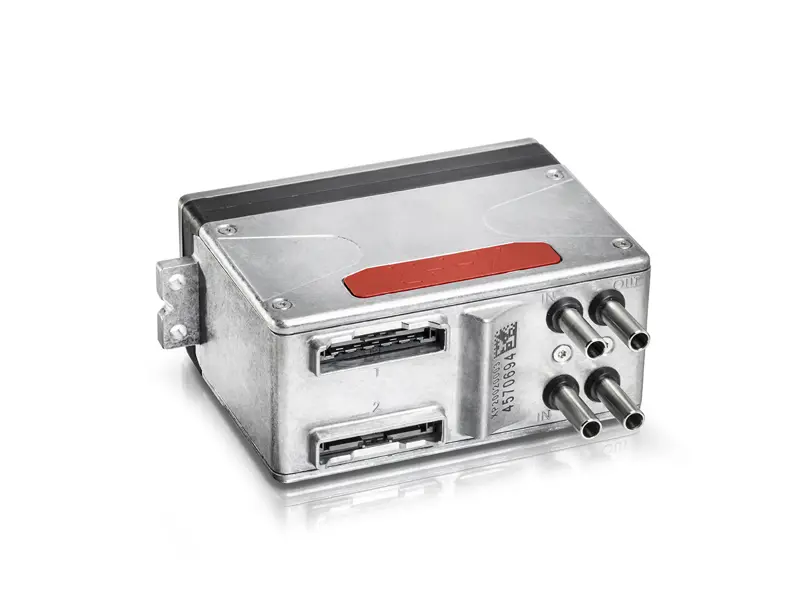

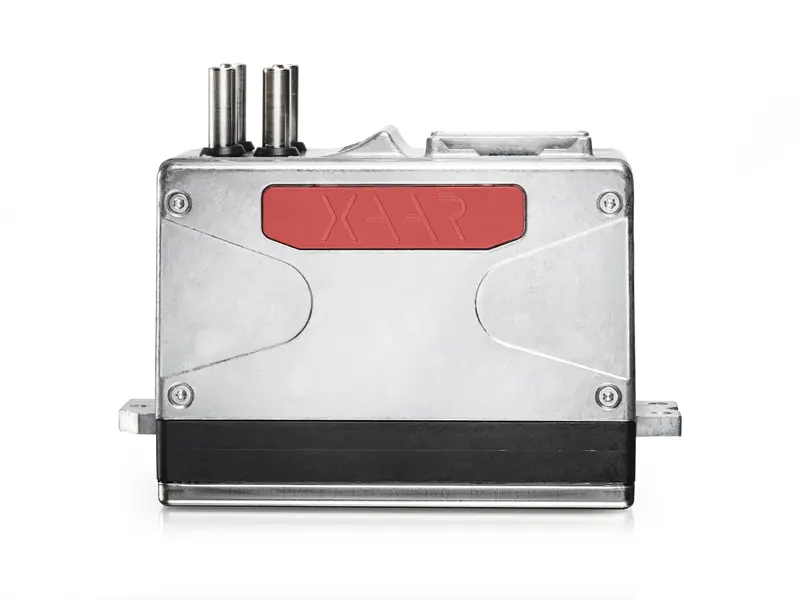

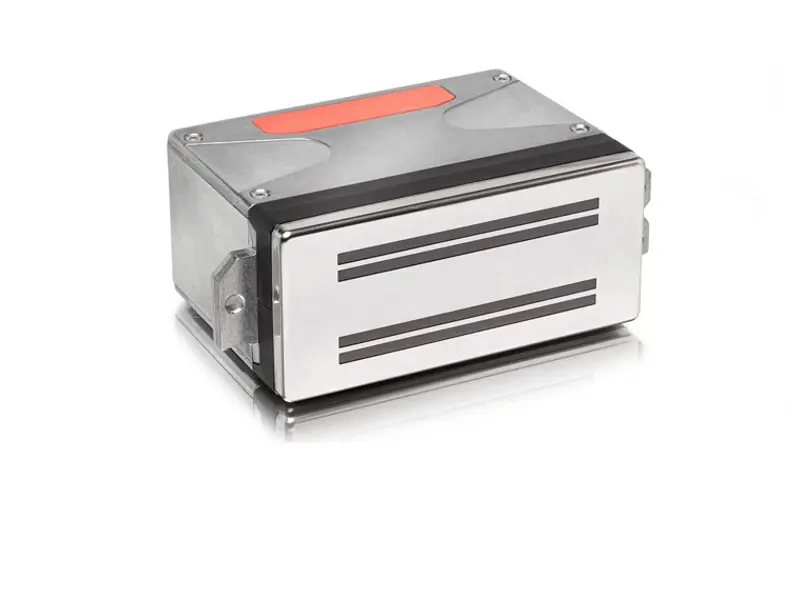

Xaar 2002

Connect and print with exceptional quality and reliability

+

Delivers exceptional print quality at 720npi

+

Superfast set up and installation times with plug and print

+

Can jet up to 100cP high viscosity fluids

+

Continuous, reliable printing with TF Technology ink recirculation

2000 nozzles

2000 nozzles and wide 70mm print width for high productivity and less printhead stitching

720 nozzles per inch

High native resolution of 720 nozzles per inch providing exceptional print quality in a single pass.

Dual mode operation

Flexibility to use the 2 printing modes in different ways (such as 1 colour and 1 varnish, 2 colours, or 1 colour at 720 npi)

TF Technology

Xaar's TF Technology ensures instant prime and startup as well as reliability, ease of use and excellent print quality

High Laydown Technology

Delivers very high Volumes in a single pass, for coatings and structuring

Ultra High Viscosity Technology

Viscosities of up to 100cP can be jetted, for printing an increased colour gamut, high opacity and special effects or jetting a higher molecular weight materials

XaarGuard

Maximising life, uptime and print quality through nozzle protection

Flexible drop sizes

XaarDot provides different drop sizes from greyscale technology to optimise coverate and print quality

Print uniformity

Xaar AcuChp and TAM ensure uniformity across a single printhead and from one printhead to another

Sure Flow ultra-sonic self-cleaning

Clear and prevent nozzle blockages without the need to remove the printhead, maximising uptime for optimum productivity

Décor

Ceramic tiles
Glass
Panelled doors or furniture
Vinyl flooring
Wallpaper
Wood laminates

Packaging & labels

Containers, bottles and cans
Flexible packaging
Folding cartons
Labels

Advanced manufacturing

Wax printing

Physical Attributes	Xaar 2002 Plus			Xaar 2002 Premium			Xaar 2002 Advanced
Fluid base	Oil			Solvent, Oil			Solvent, UV, Oil
Subdrop volume* (pL)	6	12	40	6	12	40	6	12	40
Maximum firing frequency (up to) (kHz)	36	36	24	36	36	24	36	36	24
Nozzle density (nozzles per inch)	720			720			720
Print swathe width (mm)	70.52			70.52			70.52
Dimensions (mm)	132 x 50 x 105			132 x 50 x 105			132 x 50 x 105

* Dependent on ink used and system integration

Ultimate productivity and flexibility

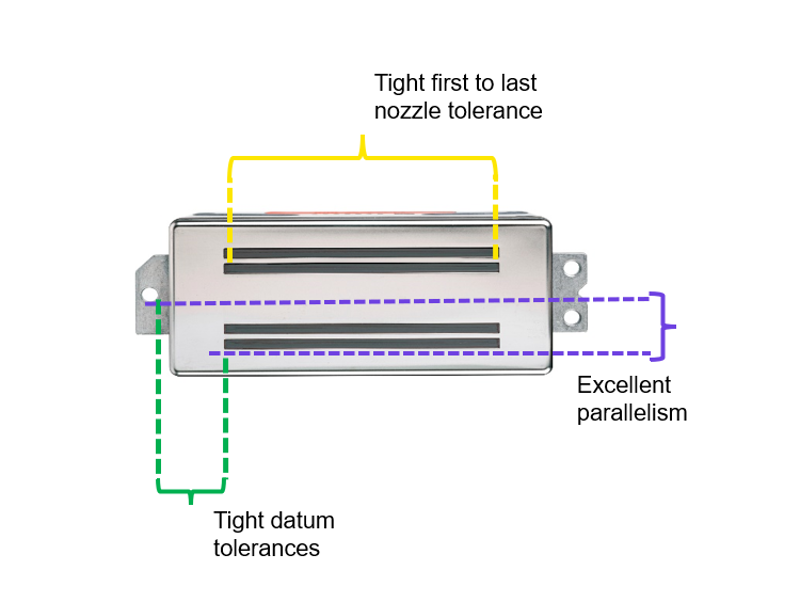

Rapid printhead installation and simple set up

Angular variation between printheads, minimal adjustment required
Accurate positioning of printheads against appropriate mounting features
Repeatable and consistent print widths between printheads

Xaar Smart reporting

Start up checks

Printhead connection, valid waveform and ready-to-print status

Ink temperature

Measured within he fluid path inside printhead. Can be managed to react to environmental and internal temperature changes to maintain print quality throughout the day

Anomaly warnings

Over temperature, voltage alerts, current alerts, allow ability to respond early and appropriately avoiding potential waste and damage
