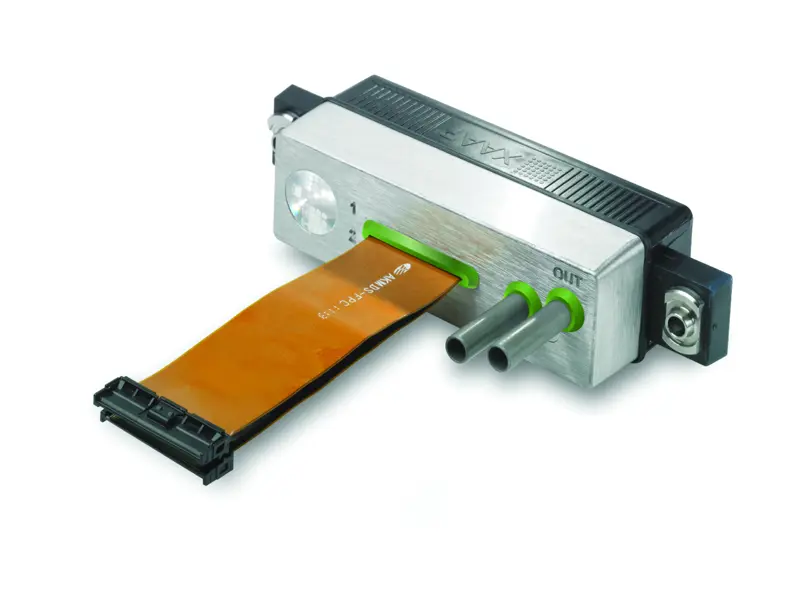

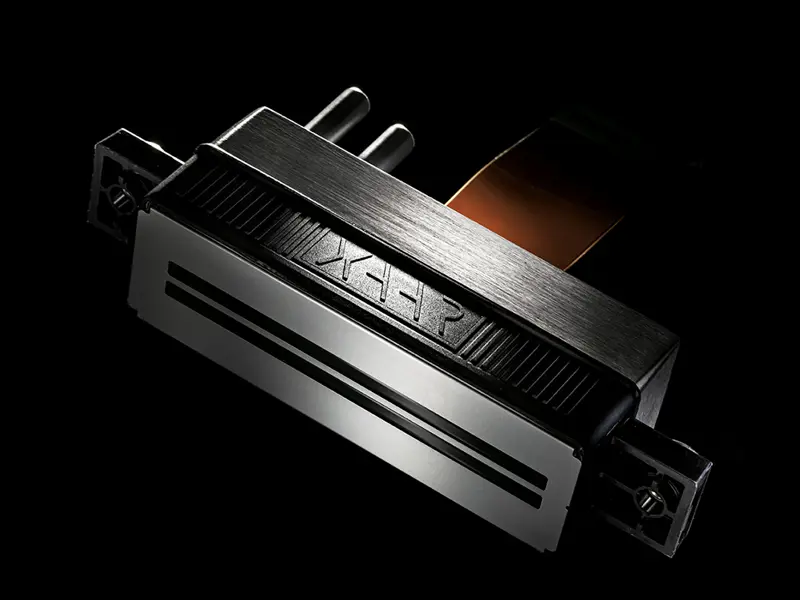

Xaar 1003 AMp

Key benefits

  • Precise fluid control: the Xaar 1003 AMp is designed for applications where tight control of fluid deposition is required. It can repeatedly jet fluid volumes tuned to a sub-drop range of between 1 and 3pL with an extremely high degree of accuracy.
  • Unrivalled reliability: the Xaar 1003 AMp printhead is designed to deliver maximum production uptime with minimum operator intervention which ensures high production output and a fast return on investment.
  • Extreme versatility: the design of the Xaar 1003 AMp enables the use of a wide range of fluids and configuration options. This is complemented by Xaar’s systems components which are optimised for the Xaar 1003 product family and ensure simple and rapid integration.

Small drop deposition on an industrial scale

Xaar’s Advanced Manufacturing printheads are designed to allow our partners to develop customised manufacturing solutions based on a proven high performance industrial inkjet platform. The Xaar 1003 AMp is the first introduction to this range of market-leading piezoelectric drop-on-demand printheads for Advanced Manufacturing applications.

The Xaar 1003 AMp is perfect for very small drop fluid deposition on an industrial scale and is capable of consistently jetting droplets as small as 1 pL for the production of fine features, patterns and coatings.



The combination of highly accurate, very small drops and unrivalled reliability enables the industrialisation of advanced manufacturing processes in sectors such as display, PCB, semiconductors and photovoltaics.

Many applications require tight regulation of coating thicknesses, precise patterns and management of substrate surface characteristics. The Xaar 1003 AMp combines highly accurate drop placement, consistent drop volume and high frequency jetting with variable drop size capability to deliver the precise fluid control essential for these processes.

  • 3D Printing
  • Additive Manufacturing
  • Biomedical
  • Flat panel display
  • PCB
  • Photovoltaics
  • Printed electronics
  • Semiconductors
  • Smart glass
Physical attributes Xaar 1003 AMp
Active nozzles 1000
Print swathe width (mm) 70.5
Number of rows 2
Nozzle pitch (interleaved) (µm) 70.5
Drop velocity* (m/s) 7
Nozzle density (nozzles per inch) 360
Print addressability (x,y) (dpi) 360 x 720
Printhead weight (dry) (g) 144
Fluid base Solvent, UV, Oil
Subdrop volume* (pL) 1 to 3
Number of grey levels* Up to 8
Typical firing frequency* (kHz) 6 to 12
Dimensions (WxDxH) (mm) 125 x 30 x 60

* Dependent on ink used and system integration

Small drop deposition on an industrial scale

Xaar’s Advanced Manufacturing printheads are designed to allow our partners to develop customised manufacturing solutions based on a proven high performance industrial inkjet platform. The Xaar 1003 AMp is the first introduction to this range of market-leading piezoelectric drop-on-demand printheads for Advanced Manufacturing applications.

The Xaar 1003 AMp is perfect for very small drop fluid deposition on an industrial scale and is capable of consistently jetting droplets as small as 1 pL for the production of fine features, patterns and coatings.

The combination of highly accurate, very small drops and unrivalled reliability enables the industrialisation of advanced manufacturing processes in sectors such as display, PCB, semiconductors and photovoltaics.

Many applications require tight regulation of coating thicknesses, precise patterns and management of substrate surface characteristics. The Xaar 1003 AMp combines highly accurate drop placement, consistent drop volume and high frequency jetting with variable drop size capability to deliver the precise fluid control essential for these processes.

  • 3D Printing
  • Additive Manufacturing
  • Biomedical
  • Flat panel display
  • PCB
  • Photovoltaics
  • Printed electronics
  • Semiconductors
  • Smart glass

Physical attributes Xaar 1003 AMp
Active nozzles 1000
Print swathe width (mm) 70.5
Number of rows 2
Nozzle pitch (interleaved) (µm) 70.5
Drop velocity* (m/s) 7
Nozzle density (nozzles per inch) 360
Print addressability (x,y) (dpi) 360 x 720
Printhead weight (dry) (g) 144
Fluid base Solvent, UV, Oil
Subdrop volume* (pL) 1 to 3
Number of grey levels* Up to 8
Typical firing frequency* (kHz) 6 to 12
Dimensions (WxDxH) (mm) 125 x 30 x 60

* Dependent on ink used and system integration

Related Resources

Xaar Advanced Manufacturing sector

Get ahead in functional fluid applications

View All

Related Products

Xaar 1003 AMx

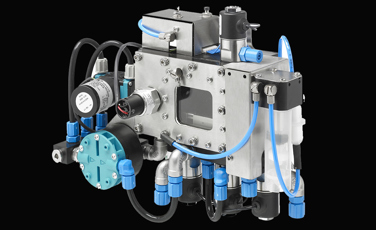

Xaar Midas HV HFR Fluid Management System
